Publishing Artifacts in Azure DevOps Pipelines

  • Jun 30, 2025


This is the second blog that explores various ways to use artifacts in Azure DevOps pipelines. The first blog covered publishing pipeline artifacts, while this blog will focus on downloading them.

I assume you have a basic understanding of Azure DevOps pipelines and the terminology. In an earlier blog there’s a brief lesson on pipelines.

Publishing for This Blog

For demonstrating downloading, the following snippet publishes two files. It is run in a loop setting env to a, then b

- pwsh: |
    "this is from $ at $((get-date).tostring("mm:ss.fff"))" > $(Agent.TempDirectory)/result.txt
    "this is from $ at $((get-date).tostring("mm:ss.fff"))" > $(Agent.TempDirectory)/$_result.txt
    Write-Host "##vso[artifact.upload artifactname=$]$(Agent.TempDirectory)/$_result.txt"
    Write-Host "##vso[artifact.upload artifactname=$]$(Agent.TempDirectory)/result.txt"

The resulting artifacts will be as follows:

Links for artifacts

Downloading Artifacts from the Portal

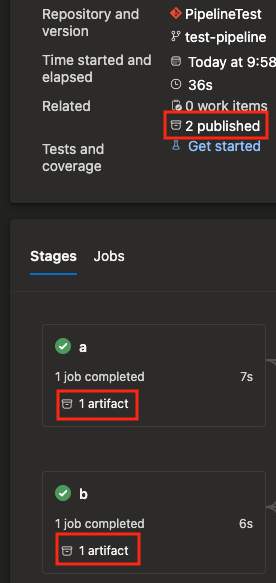

To download an artifact from a pipeline to your machine, there are links on the pipeline’s summary page. In the Related section, the 2 published is a link to artifacts, as well as the 1 artifact link in each job.

Links for artifacts

Then, when you open a job, there is another link to the artifacts.

Links within a job

You would think that the links would take you to the artifacts for the job, but they all take you to the list of all the artifacts for the pipeline. You then have to figure out which artifact you’re after.

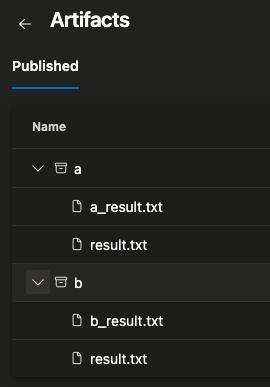

List of artifacts

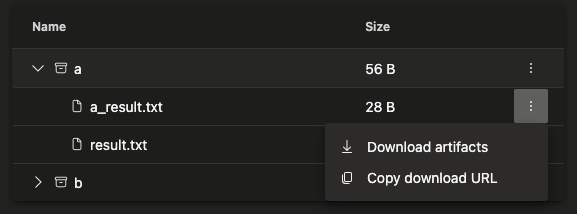

You can use the kebab menu (⋮) to download all the files in the artifact, or one specific file within the artifact.

Downloading Artifacts from the CLI

The previous post has a section that shows how to get artifacts from the CLI.

Downloading Artifacts in a Pipeline

There are two ways to download pipeline artifacts from an Azure DevOps pipeline:

They both will download artifacts, but the latter is more generic, so I usually use DownloadPipelineArtifact to be explicit about what I’m doing.

Using a Task

The DownloadPipelineArtifact task.

The simplest way to download all the artifacts is to add the task with no parameters.. It will download each artifact into a subfolder of $(Pipeline.Workspace), which will be something like /home/vsts/work/1

- task: DownloadPipelineArtifact@1

Given the artifacts published above, the files will be in a subfolder with the artifact name like this:

/home/vsts/work/1/a/a_result.txt
/home/vsts/work/1/a/result.txt
/home/vsts/work/1/b/b_result.txt
/home/vsts/work/1/b/result.txt

To only download a into $(Pipeline.Workspace)

- task: DownloadPipelineArtifact@2
  inputs:
    artifactName: a

The files will not be in a subfolder, but directly in $(Pipeline.Workspace):

/home/vsts/work/1/result.txt
/home/vsts/work/1/a_result.txt

And to put them into a specific folder, you can use the downloadPath:

- task: DownloadPipelineArtifact@2
  inputs:
    artifactName: b
    targetPath: test

The files will be in a test folder:

/home/vsts/work/1/s/test/b_result.txt
/home/vsts/work/1/s/test/result.txt

You can also filter the files to pull from the artifact using itemPattern using pattern matching. Note that the path will include the artifact name, so you can use **/pattern or prefix with the name, as below.

- task: DownloadPipelineArtifact@2
  inputs:
    artifactName: b
    targetPath: test
    itemPattern: b/result.*

Only the one file will be in a test folder:

/home/vsts/work/1/s/test/result.txt

Downloading Artifacts from a Different Pipeline

I’ve found that usually I’m in the same pipeline when I download an artifact, but you can also download artifacts from a different pipeline. In the yaml below, I trigger this pipeline from the one that created the artifacts (test-artifact), and then download a to the test folder. As you can see, there are many more parameters required in this case, and more optional ones not shown.

resources:
 pipelines:
   - pipeline: test-artifact
     source: test-artifact
     branch: test-pipeline
     trigger: true

steps:
  - task: DownloadPipelineArtifact@2
    inputs:
      buildType: specific
      buildVersionToDownload: latest
      definition: 55 # pipelineId
      project: PipelineTest
      branchName: test-pipeline
      targetPath: test
      artifactName: a

Which results in the following files.

/home/vsts/work/1/s/test/a_result.txt
/home/vsts/work/1/s/test/result.txt

Summary

There are several scenarios where one stage publishes files that downstream ones consume. In this blog, I covered downloading them within a pipeline, as well as from a different pipeline.
